64-channel, 16-bit PCI digital I/O lab board w/event count streaming

PDL-DIO-64CT

Features

64-channel, 16-bit PCI digital I/O lab board w/event count streaming

  • For PCI bus
  • 64 lines (5 V/TTL) of I/O in 16-bit ports
  • Generate interrupts on any line
  • Four separate high-speed IRQ lines (100 ns)
  • User-defined power-up state in 16-bit groups (High, Low, Tri-stated)
  • Two Enhanced Synchronous Serial Interfaces (ESSIs) for high-speed devices such as codecs
  • Three clock/interrupt lines, three 24-bit counters/timers
  • Onboard 16-bit FIFO: 2k samples
  • High-speed event counts streaming (2 Mwords/s)
  • PowerDAQ Software for Windows NT/2000/XP and Linux/RTLinux
64-channel, 16-bit PCI digital I/O lab board w/event count streaming
Quantity:
Contact Us

Typically in stock for shipment in 3-4 weeks. Subject to global supply chain challenges.

PDL-DIO-64CT

Ask a Question

64 digital I/O channels, high-speed event counts streaming (2 Mwords/s) PCI digital I/O lab board.

This product is Non Cancelable Non Returnable (NCNR) and cannot be cancelled and the products cannot be returned once purchased.

Note: This board is no longer available. Due to the discontinuation of components needed to build this model, it is no longer being manufactured. Please contact the factory to see what options are available as alternatives

Downloads

Datasheet User Manual

Compatibility

Related Products

64-channel, 16-bit PCI digital I/O lab board
64-channel, 16-bit PCI digital I/O lab board

PDL-DIO-64

 64-channel, 16-bit PCI digital I/O lab board with time sequencing
64-channel, 16-bit PCI digital I/O lab board with time sequencing

PDL-DIO-64TS

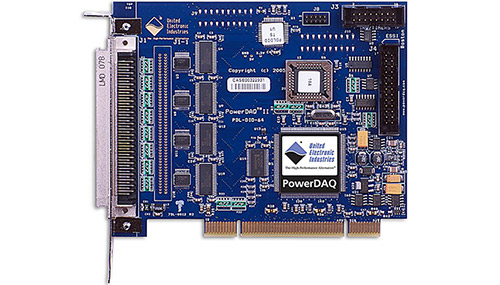

 64-channel, 16-bit PCI digital I/O lab board w/pattern generation
