96-channel, 16-bit, 100 kS/s per channel PCI analog output board

PD2-AO-96/16A

Features

96-channel, 16-bit, 100 kS/s per channel PCI analog output board

  • For PCI bus
  • 96 analog outputs, 16-bit resolution
  • 8 digital input lines, 8 digital output lines
  • Three clock/interrupt lines, three 24-bit counters/timers
  • Each 16 channels are pin-to-pin compatible with Keithley and Measurement Computing (ComputerBoards) boards
  • Channel list (64 locations)
  • User defined power-on state
  • Simultaneous channel update; update on external event
  • 2k samples onboard buffer size (upgradable to 64K samples)
96-channel, 16-bit, 100 kS/s per channel PCI analog output board
Quantity: $16715
Add to Cart

Typically in stock for shipment in 3-4 weeks. Subject to global supply chain challenges.

PD2-AO-96/16A

Ask a Question

96-channel analog output data acquisition card. 16-bit resolution, 100 kS/s per channel update rate, three 24-bit counter/timers, 16 digital I/O lines.

This product is Non Cancelable Non Returnable (NCNR) and cannot be cancelled and the products cannot be returned once purchased.

Note: This board is not recommended for use in new, long-term applications. Our plan is to maintain this board’s availability until at least January 31, 2028. However, unlike our DNx series availability guarantee, we cannot guarantee availability until 2028. Though we will not discontinue the board simply due to declining sales, we reserve the right to discontinue it should a key component required to build the board become unavailable.

Downloads

Datasheet User Manual

Compatibility

Related Products

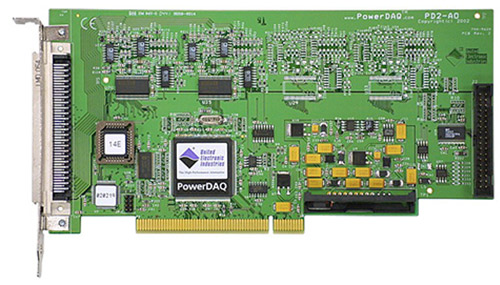

8-channel, 16-bit, 100 kS/s per channel PCI analog output board
8-channel, 16-bit, 100 kS/s per channel PCI analog output board

PD2-AO-8/16

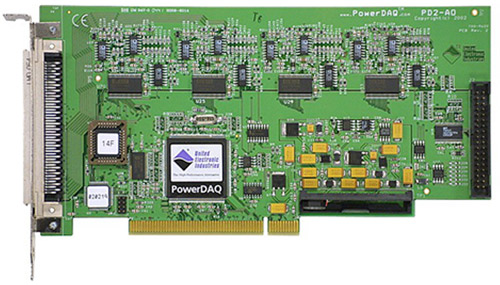

 16-channel, 16-bit, 100 kS/s per channel PCI analog output board
16-channel, 16-bit, 100 kS/s per channel PCI analog output board

PD2-AO-16/16

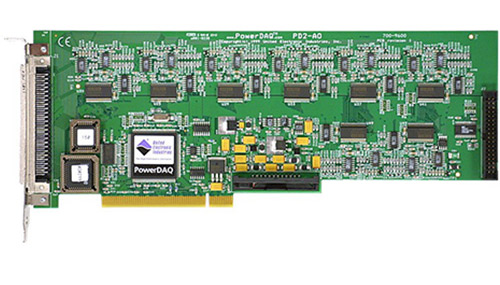

 32-channel, 16-bit, 100 kS/s per channel, high-speed PCI analog output board
32-channel, 16-bit, 100 kS/s per channel, high-speed PCI analog output board

PD2-AO-32/16HS

 96-channel, 16-bit, 100 kS/s per channel, high-speed PCI analog output board
96-channel, 16-bit, 100 kS/s per channel, high-speed PCI analog output board

PD2-AO-96/16HS

 32-channel, 16-bit, 100 kS/s per channel, high-current PCI analog output board
32-channel, 16-bit, 100 kS/s per channel, high-current PCI analog output board

PD2-AO-32/16HC

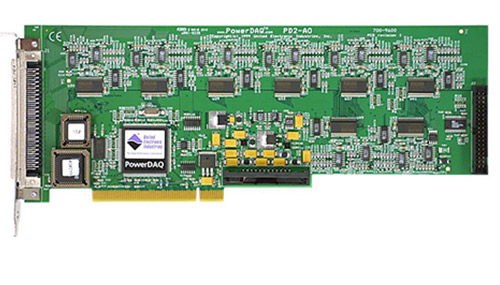

 32-channel, 16-bit, 100 kS/s per channel PCI analog output board
