Unity Gain, 250 mA Current Buffer Board

UEI-STP-AO-200

Features

Unity Gain, 250 mA Current Buffer Board
Quantity: €1365
Add to Cart

Typically in stock for shipment in 3-4 weeks. Subject to global supply chain challenges.

UEI-STP-AO-200

Ask a Question

The UEI-STP-AO-200 is a unity gain, high current output buffer board for use with DNA-AO-308 and PD2/PDXI series analog output boards. The board offers a gain of 1 ±0.2% and drives up to 250 mA at ±10 Volt. The unit requires the user to supply a ±13 to ±15 volt power supply with current capability to support the output current required. Those who perfer not to supply bipolar power should order the UEI-STP-AO-200D, which includes a DC/DC converter and requires a +9V to +36V power supply.

Downloads

Datasheet User Manual

Compatibility

Related Products

0- 35 VDC, 250 mA Current Buffer Board
0- 35 VDC, 250 mA Current Buffer Board

DNA-STP-AO-250

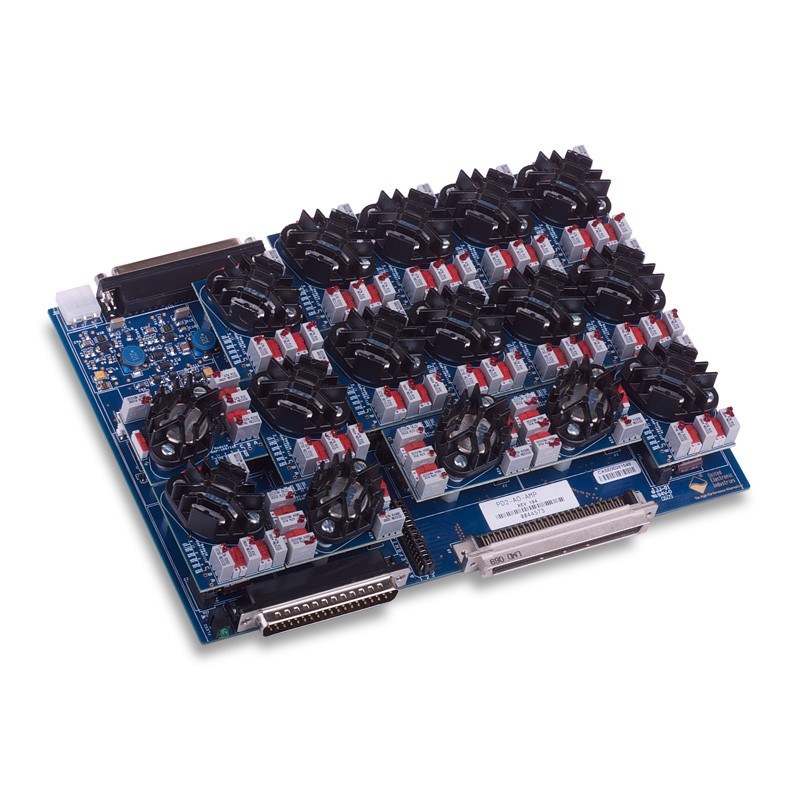

 16-channel analog output 115V amplifier
16-channel analog output 115V amplifier

PD-AO-AMP-115

 8-Channel, 16-bit, 100 kS/s per channel, 0-10V Analog Output Board
8-Channel, 16-bit, 100 kS/s per channel, 0-10V Analog Output Board

DNx-AO-308

 8-Channel isolated D/A Board with Built-in current and voltage readback
8-Channel isolated D/A Board with Built-in current and voltage readback

DNx-AO-318
